--Coaxial speaker unit
--Carbon fiber water-proof cone for woofer
--High elastic surround
--13 core and PEI 0.05mm thick treble film
--Sound quality is delicate and powerful.
--The grille can easily be attached to the speaker by means of coil springs.
--Widely used in supermarkets, hotels, subways and so on.
--The Dustproof Level :IP 4X

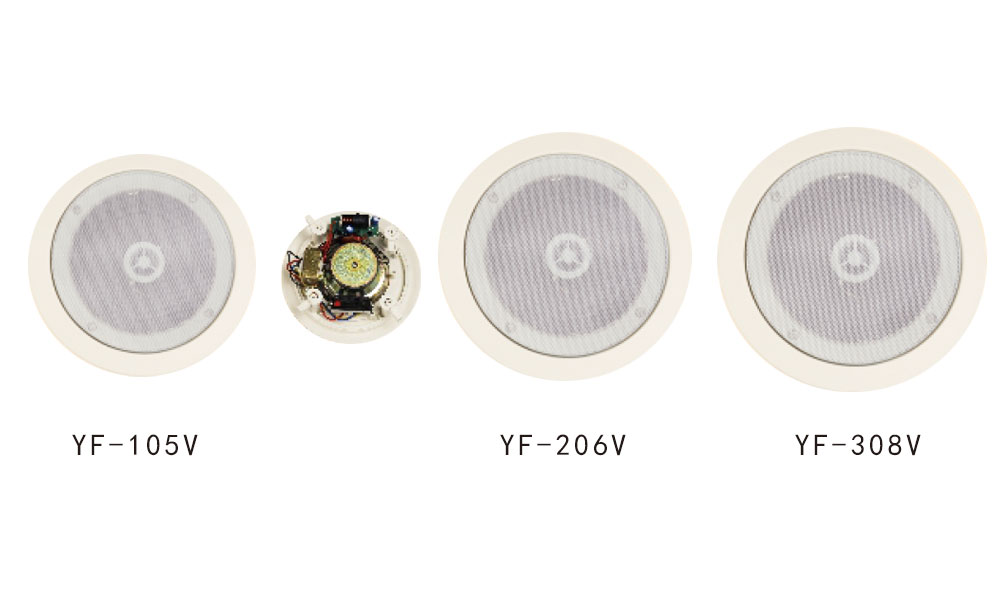

Model | YF-105V | YF-206V | YF-308V |
Rated Power | 10W | 20W | 30W |
Input Model | 70V/100V | 70V/100V | 70V/100V |
Sensitivity | 91dB±2dB | 92dB±2dB | 93dB±2dB |
Frequency Response | 100Hz-20KHz | 80Hz-20KHz | 60Hz-18KHz |
Material | ABS+ Iron Net | ABS+ Iron Net | ABS+ Iron Net |
Speaker Unit | 5” x 1; 1”x1 | 6.5” x 1; 1.5” x 1 | 8” x 1; 1.5” x 1 |
Mounting Hole | Φ175mm | Φ210mm | Φ255mm |
Panel Size | Φ210 x 75mm | Φ240 x 85mm | Φ285 x 85mm |
Weight | 0.96kg | 1.9kg | 2.2kg |
