Power Adjustable Ceiling Speaker Series

--Two frequency superior quality ceiling speaker.

--With iron-made back box that prevents the fire and mouse.

--Wide frequency response.

--Carbon fiber water-proof cone for woofer.

--Imported silk silver treble film

--Sound quality is delicate and powerful.

--The grille can easily be attached to the speaker by means of coil springs.

--Widely used in supermarkets, hotels, subways and so on.

--The Dustproof Level :IP 4X




--Two frequency superior quality ceiling speaker.

--With iron-made back box that prevents the fire and mouse.

--Wide frequency response.

--Carbon fiber water-proof cone for woofer.

--Imported silk silver treble film

--Sound quality is delicate and powerful.

--The grille can easily be attached to the speaker by means of coil springs.

--Widely used in supermarkets, hotels, subways and so on.

--The Dustproof Level :IP 4X




  • Specifications

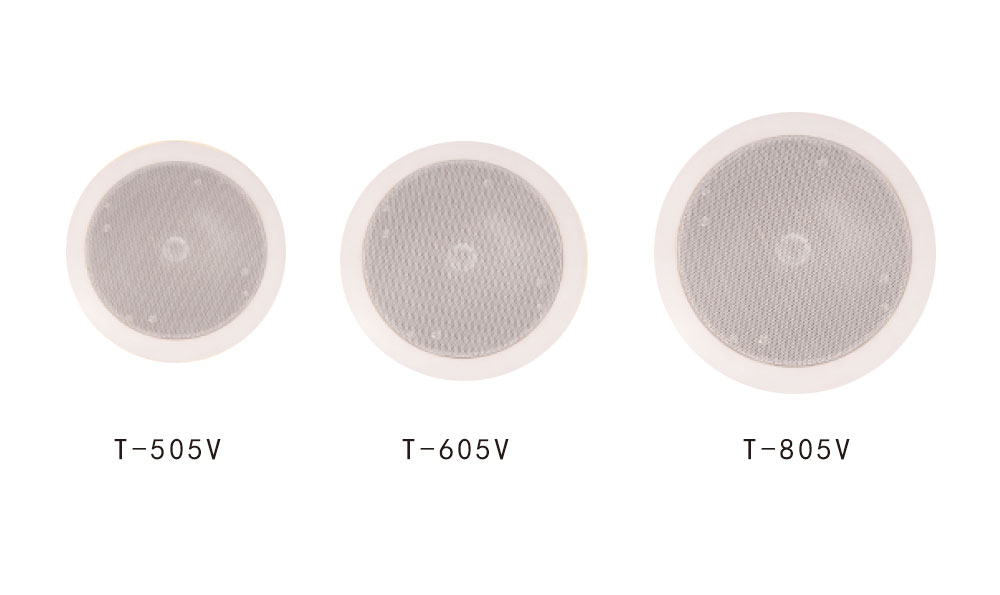

Model

T-505V

T-605V

T-805V

Rated Power

25W/20W/10W/5W

25W/20W/10W/5W

25W/20W/10W/5W

Input Model

70V-100V

70V-100V

70V-100V

Sensitivity

90dB±2dB

91dB±2dB

92dB±2dB

Frequency Response

80Hz-18KHz

110Hz-16KHz

 110Hz-16KHz

Material

ABS+ Iron net+Iron bucket

ABS+ Iron net+Iron bucket

ABS+ Iron net+Iron bucket

Speaker Unit

5” x 1; 1.5”x1

6.5” x 1; 1.5” x 1

8” x 1; 1.5” x 1

Mounting Hole

Φ180-185mm

Φ205-210mm

Φ245-250mm

Panel Size

Φ212 x 150 mm

Φ240 x 160 mm

Φ280 x 185mm

Weight

1.7kg

2.38kg

2.84kg
